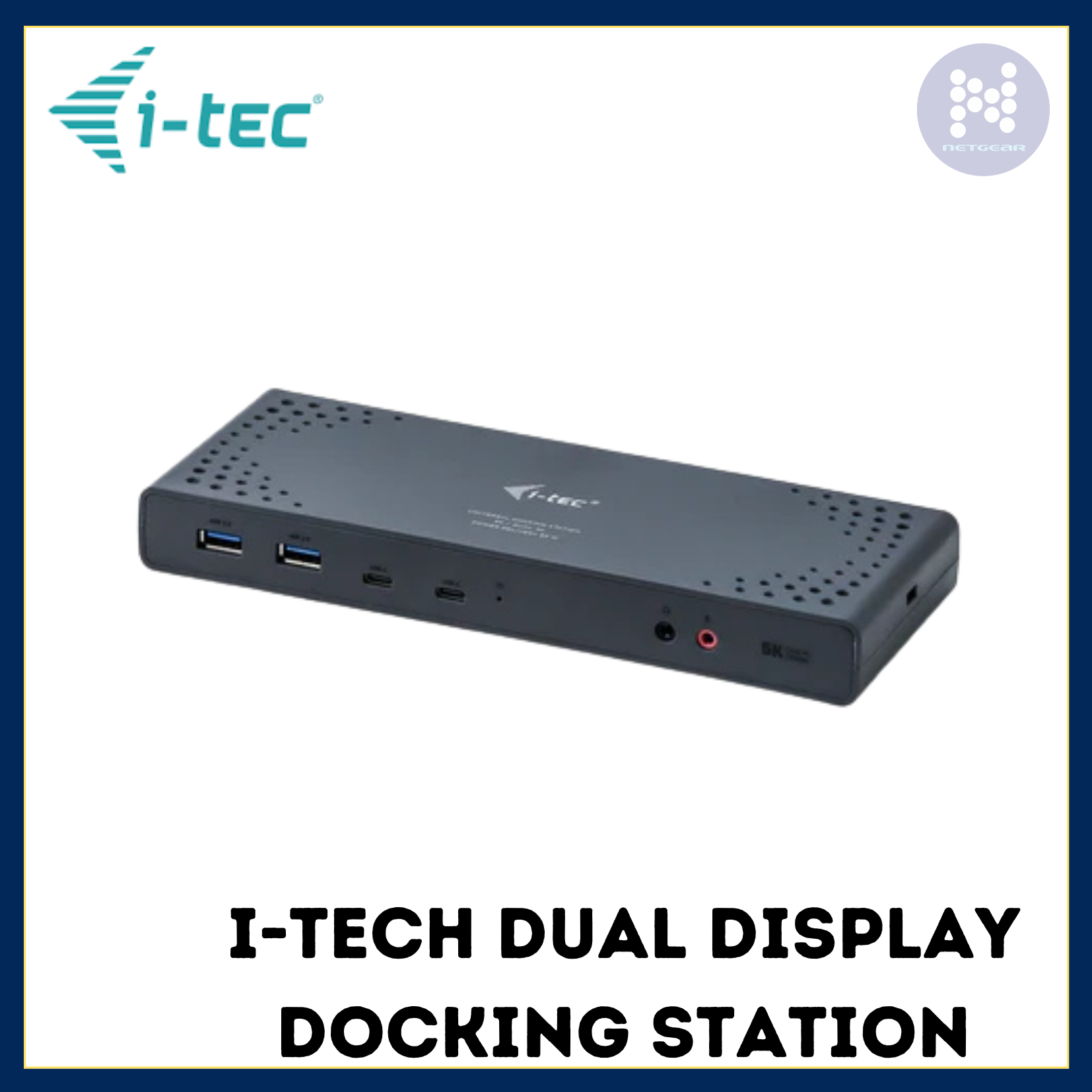

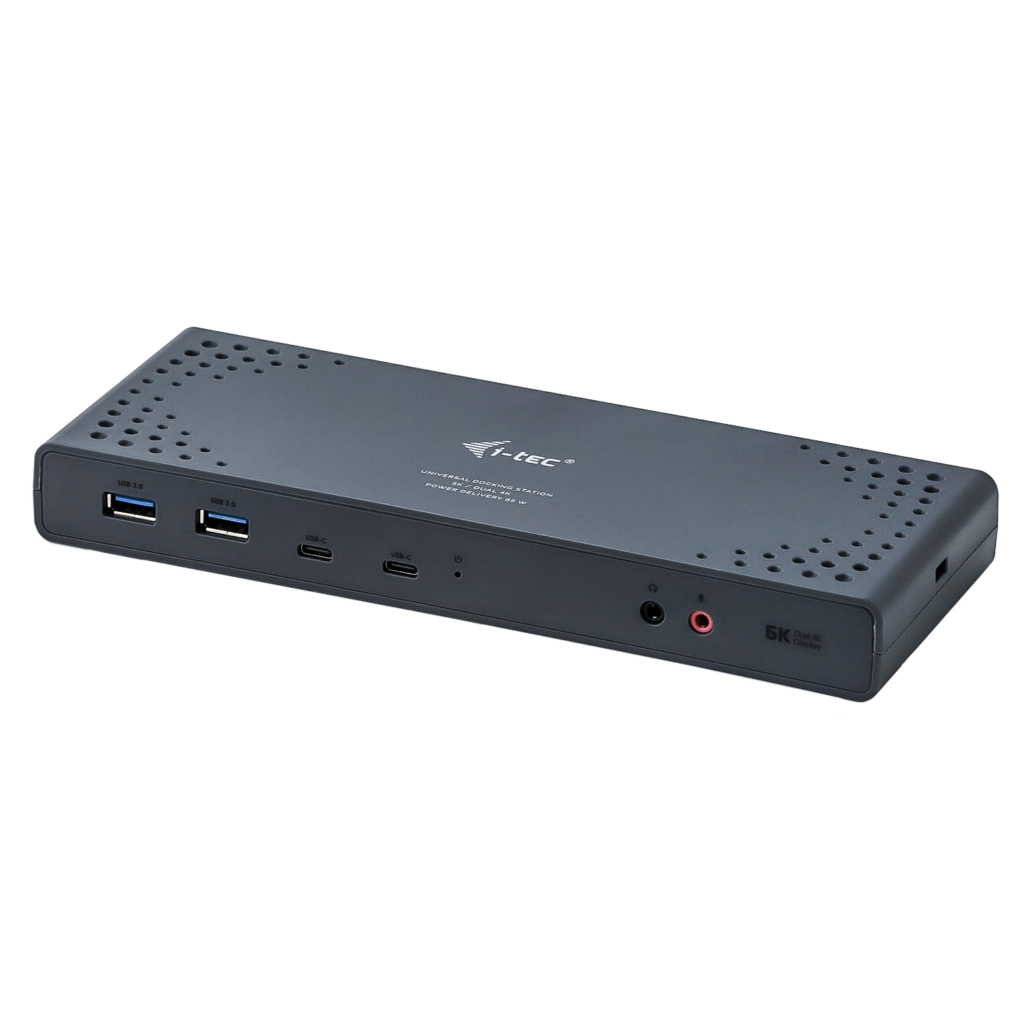

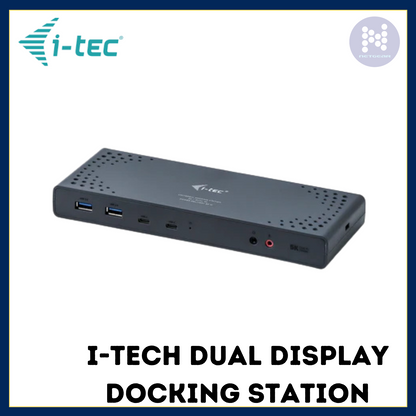

I-TECH DUAL DISPLAY DOCKING STATION. USB 3.0/USB-C/HDMI/DP/ETHERNET

Enhance your notebook, tablet or smartphone

using USB-C or USB-A connectivity.

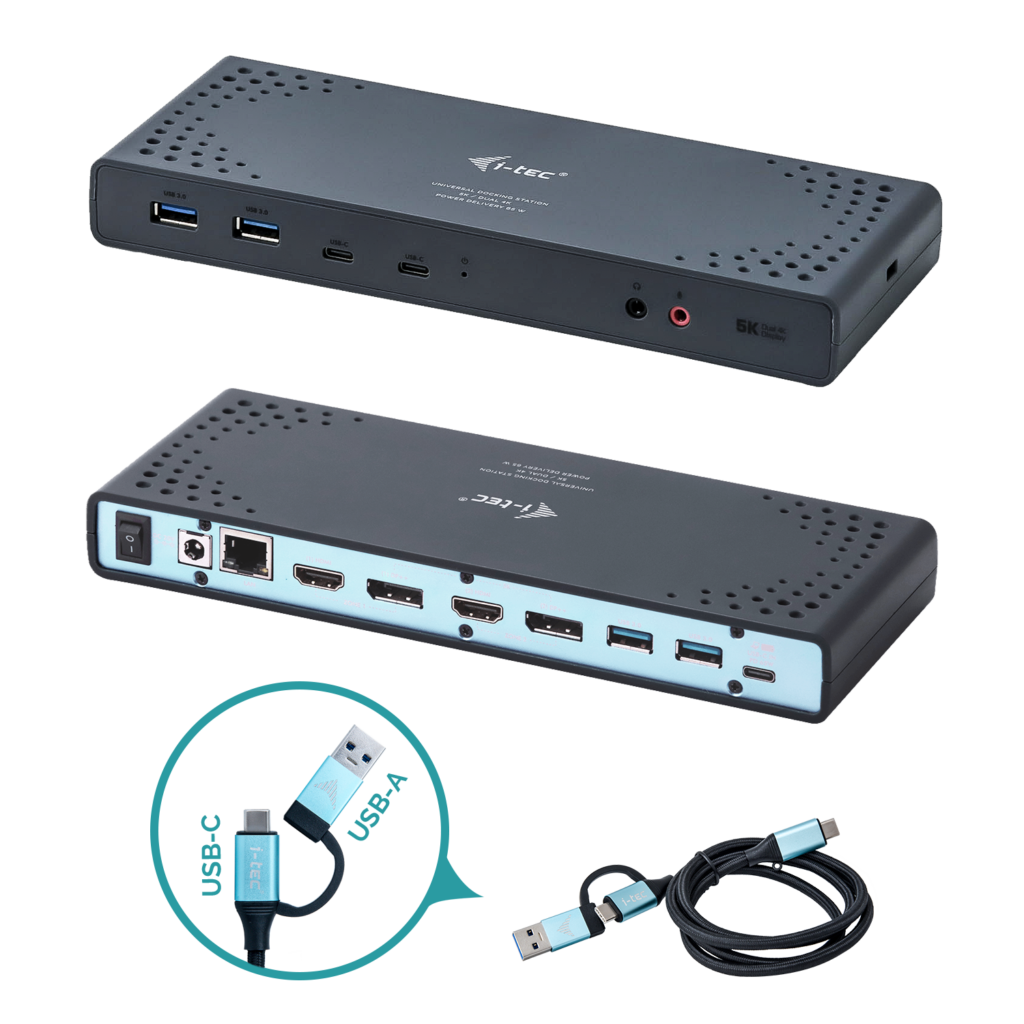

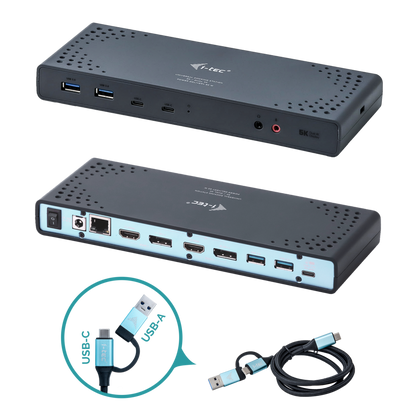

This Thunderbolt 3 compatible USB-C dual monitor docking station features the latest DisplayLink DL9650 chipset and offers the flexibility of both USB-C and USB-A host interfaces. A connecting cable with both ends (USB-C for C, USB-C for A) is a part of the package.

As far as the docking station is connected either to a laptop or to a tablet that supports charging-up at its USB-C or Thunderbolt 3 port, then it is able to provide the power supply (Power Delivery) up to 65W.

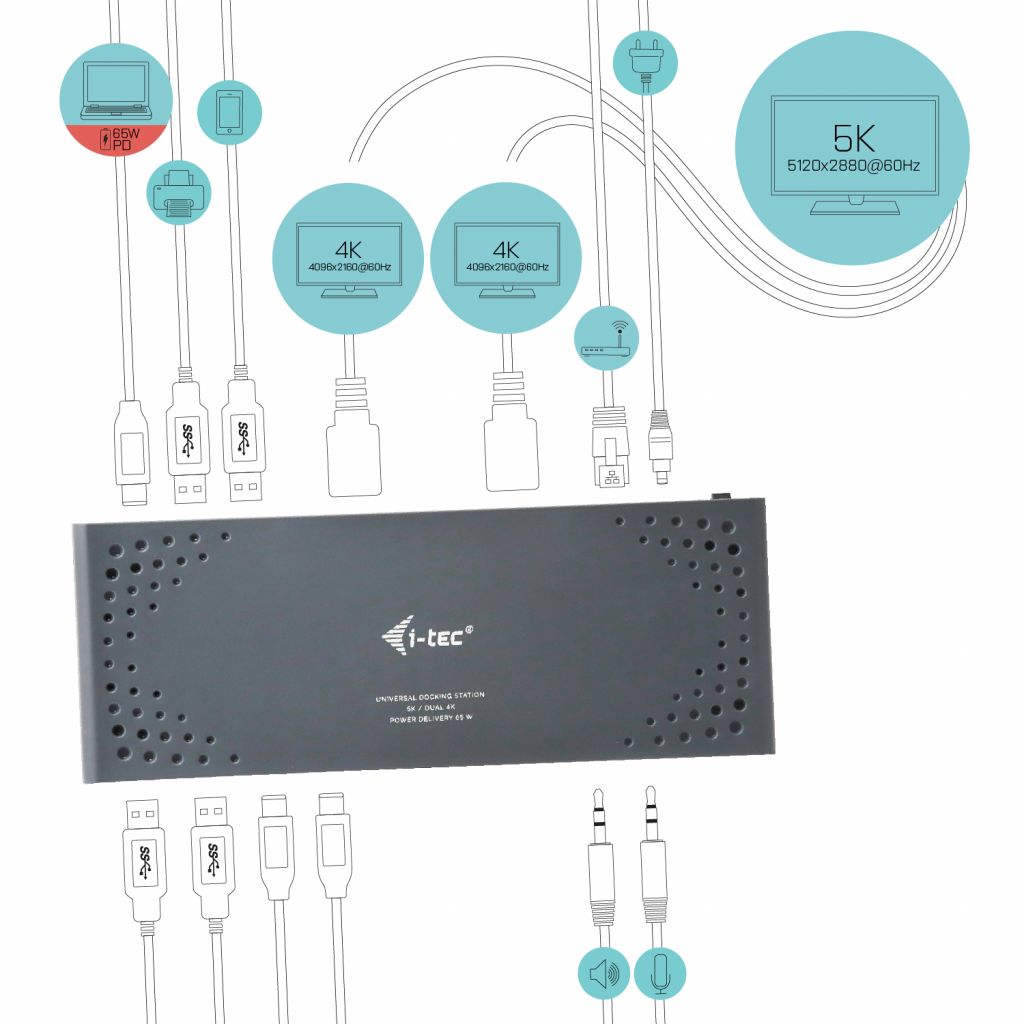

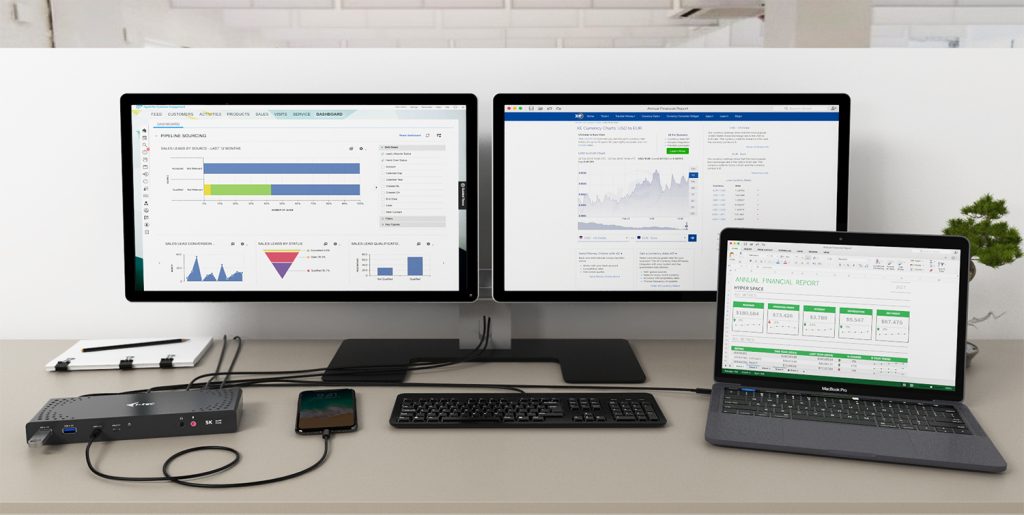

The unit is equipped with four graphics outputs, 2x HDMI, and 2x DisplayPort, although a maximum of two monitors can be supported simultaneously. Connect two monitors simultaneously and enjoy the higher 4096 x 2160 resolution @ 60 Hz, using any interface configuration (DP + DP, DP + HDMI, HDMI + HDMI). 5K resolution (5120 x 2880 @ 60 Hz)* is supported when a single monitor is connected via two DisplayPort cables.

4x USB-A 3.0 ports (USB 3.0 / 2.0 compatible) make it easy to connect all of your existing hardware and Gigabit Ethernet RJ45 port provides reliable, robust and high-speed internet connection, supporting 10/100/1000 Mbps speeds. 3.5 mm audio jacks can be found on the front panel and an easily accessible power-saving on/off switch can be found on the rear panel. The addition of a Kensington lock slot provides additional security, especially for those working regularly in public spaces.

i-tec docking stations are compatible with the vast majority of notebook brands and platforms, making it easier than ever to connect your favourite hardware. The unit is extremely compact, perfect for use at home or in the office. Due to the hybrid interface option especially hot desk use, due to the USB-C or USB-A interface options.

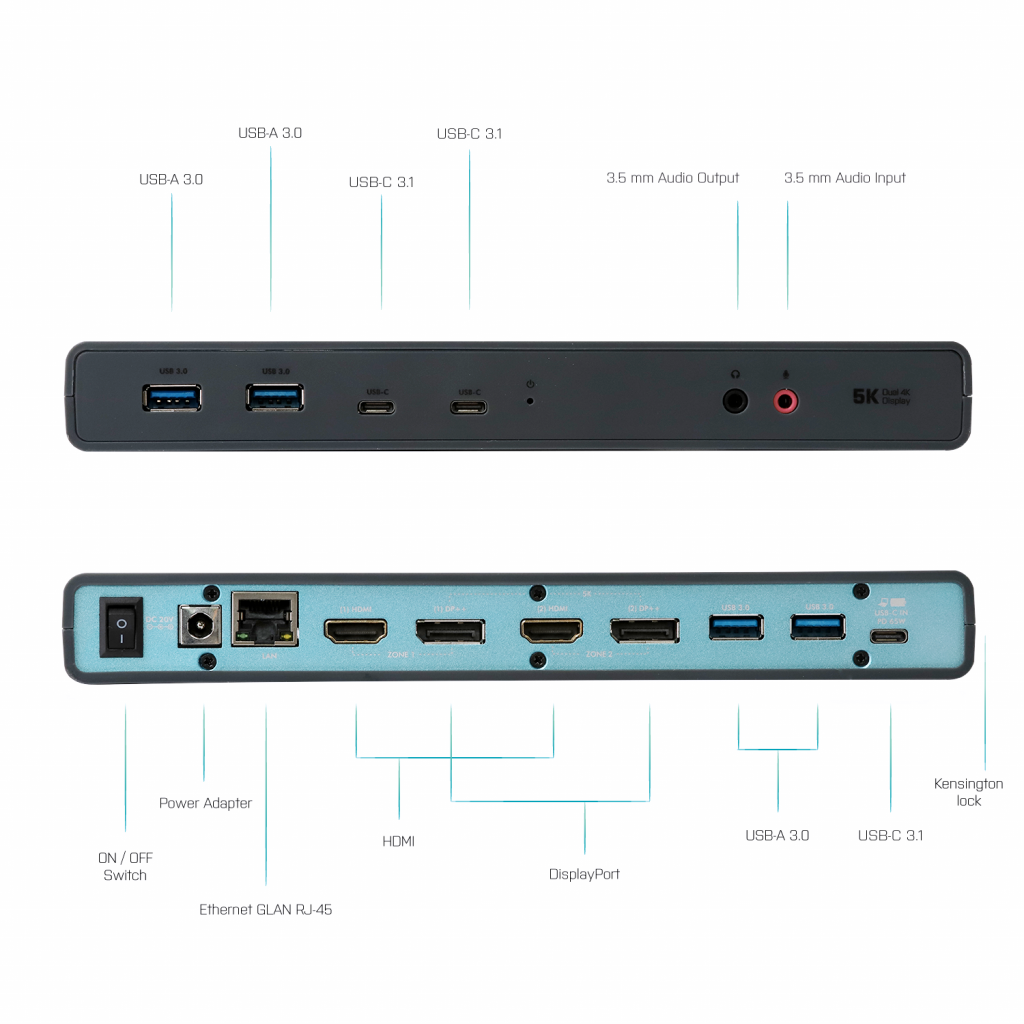

SPECIFICATIONS

• 1x USB-C port for connecting to the host device with USB-C or USB-A port (cable USB-C and adapter from USB-C to USB 3.0 is included)

• Docking station technology: DisplayLink + USB-C PD

• Power Delivery: 65W

• Video Ports:
  • 2x Display Port (DP++ support)
  • 2x HDMI

• Supported Resolutions:
  • 1 monitor – 1x Display Port → up to 4K/60Hz
  • 1 monitor – 1x HDMI → up to 4K/60Hz
  • 1 monitor – 2x Display Port → up to 5K/60Hz*
  • 2 monitors – 1x Display Port + 1x Display Port → up to 2x 4K/60Hz
  • 2 monitors – 1x Display Port + 1x HDMI → up to 2x 4K/60Hz
  • 2 monitors – 1x HDMI + 1x HDMI → up to 2x 4K/60Hz

• 2x USB-C 3.1 port
• 3x USB 3.0 port
• 1x USB 3.0 port with fast charge support (BC 1.2)
• 1x Ethernet GLAN RJ-45 port (DisplayLink DL-6950)
• 1x 3,5mm Audio output, 1x 3,5mm Microphone input
• 1x Power input (DC 20V/5A)
• On/Off switch
• LED indicator
• Kensington lock support
• USB-C cable with USB-C to USB-A adapter(100 cm)
• OS: Windows 7 / 8 / 8.1 / 10, macOS X, Linux Ubuntu 14.04, 16.04, 17.04, 17.10 18.04, 19.04, Android 5 or later, Chrome OS R51 or later
• Easy driver installation (Windows, MacOS, Ubuntu, Android (external link))
• Product dimensions: 223 x 88 x 27 mm
• Product weight: 338 g
• Package dimensions: 314 x 144 x 60 mm
• Package weight: 1380 g

* 5K resolution is supported only by Windows

SYSTEM REQUIREMENTS

Hardware requirements:

• Device with an available USB-A, USB-C or Thunderbolt™3 port

Power Delivery Requirements:

• Host device with an available USB-C or Thunderbolt™3 port that provides Power Delivery support

Operating System:

• Windows 7 / 8 / 8.1 / 10, macOS X, Linux Ubuntu 14.04, 16.04, 17.04, 17.10 18.04, 19.04, Android 5 or later, Chrome OS R51 or later

If the docking station is connected via USB 3.0, charging of laptops and tablets is not supported.

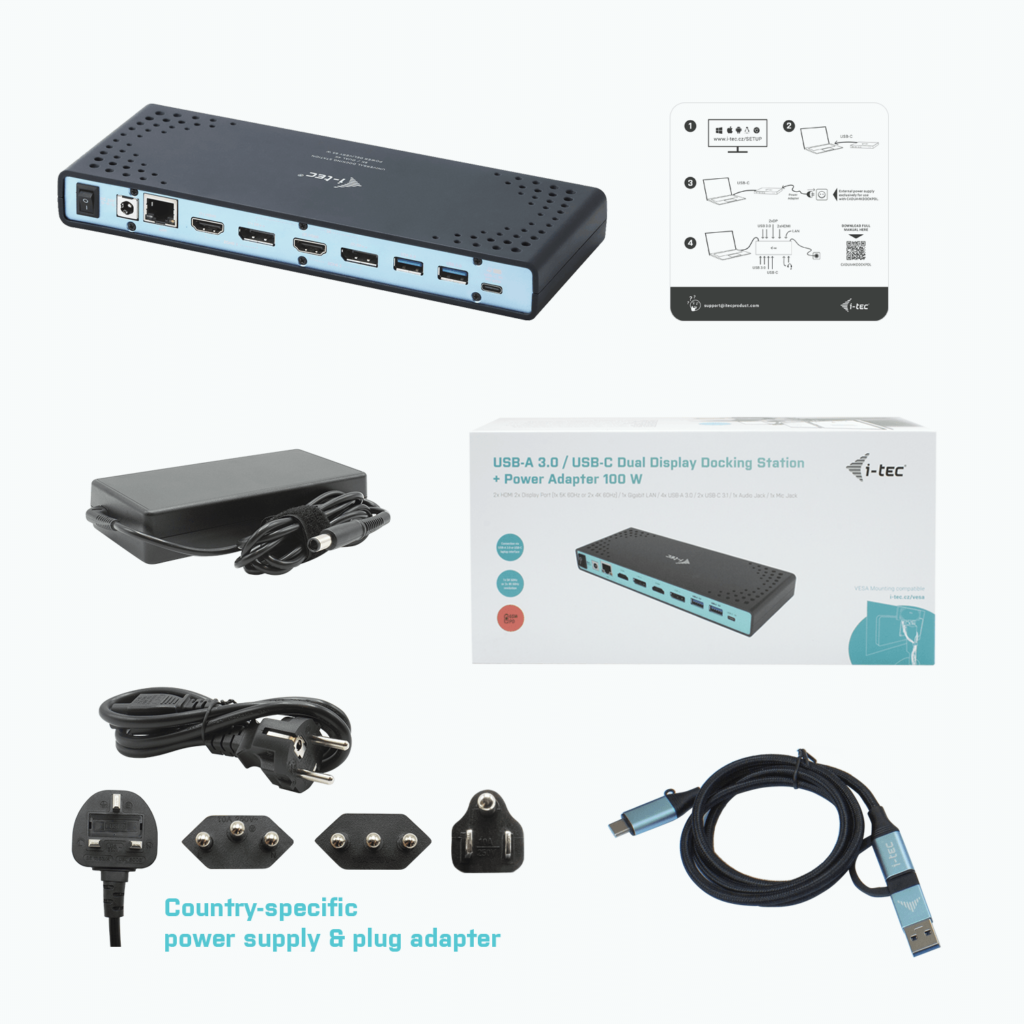

Package contents

• Product
• USB-C cable with USB-C to USB-A adapter (100 cm)
• Power adapter (DC cable 110cm, power cable 170cm)
• Manual
